Barbed Wire Fence

Wholesale Barbed Wire Fence Supplier in China
Gesson is a professional barbed wire fencing wholesale supplier. We supply distributors, contractors, and export projects worldwide with high-quality, durable barbed wire fencing solutions.

With ISO 9001:2015 certification and over 10 years of export experience, our fencing solutions are trusted for reliability, safety, and long-term performance. Our barbed wire can be combined with wire mesh fences or an electric fence system for enhanced security and perimeter protection.

The barbed wire fence is twisted by a fully automatic barbed wire machine. Barbed wires are divided into galvanized barbed wire, aluminum alloy barbed wire, and PVC coated barbed wire. We also supply concertina barbed wire and concertina razor products for high-security applications. Surface treatment processes include electro-galvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. The barbed wire is available in different colors: silver, blue, green, yellow, etc.

Raw Materials
Generally, high-quality low-carbon steel wires (galvanized wires) or PVC-coated iron wires.

Applications:

• Agricultural fencing: Protect crops and livestock efficiently

• Industrial & warehouse perimeter: Secure storage and factory sites

• Border protection & military zones: Reliable high-security fencing

• Construction site safety: Temporary or permanent site barriers

Types
The types of barbed wire fence according to surface treatment:

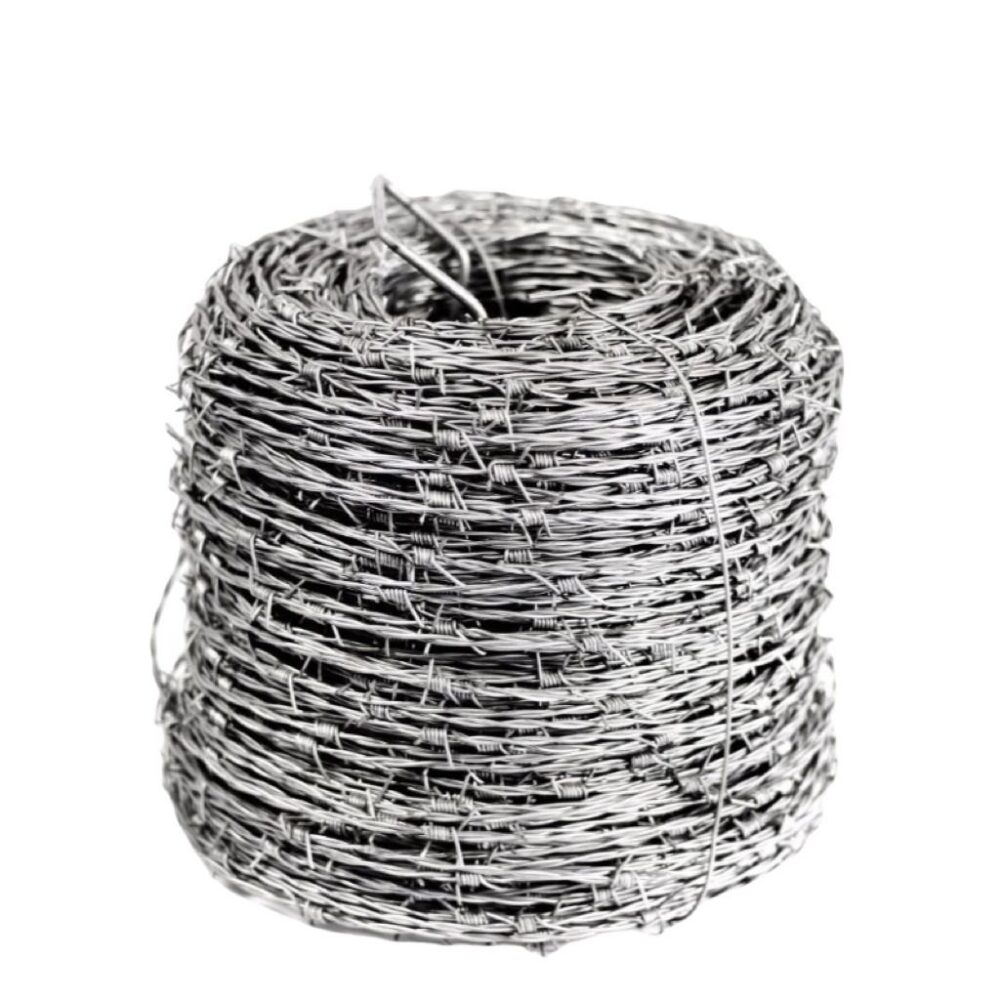

1. Galvanized barbed wire fence
   Made of galvanized iron wires. Two types available: electro-galvanized and hot-dip galvanized. Our factory produces IOWA type galvanized barbed wire, with 2 strands twisted and each barb length of 1.3 cm. Barb spacing: 3–6 inches (tolerance ± 1/2 inch). Suitable for industrial, agricultural, animal husbandry, residential, plantation fields, or fencing protection.
   Packaging: in rolls.
   Specifications:

   • Size range: 1.20mm – 4.00mm

   • Tensile strength: 350MPa – 1400MPa

   • Galvanized layer: 10g/m² – 450g/m²

2. Aluminized barbed wire fence
   A newly launched product with a layer of aluminum covering the surface. Aluminum does not corrode, so this aluminized barbed wire greatly improves corrosion resistance and extends service life.

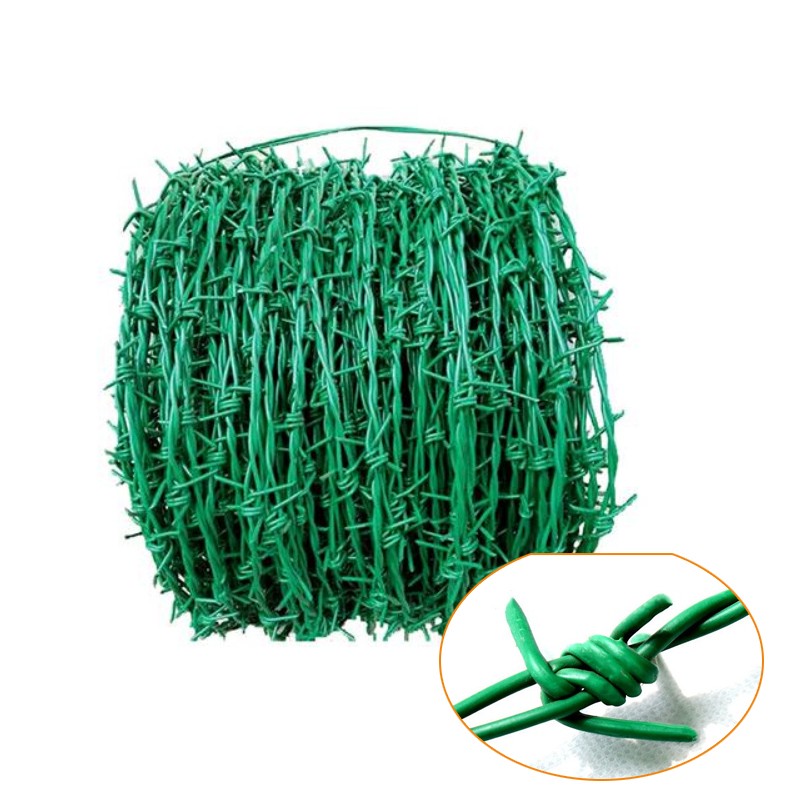

3. PVC-coated barbed wire fence
   The surface treatment is PVC-coated, with core wire made of iron wire, electro-galvanized iron wire, or hot-dip galvanized iron wire.

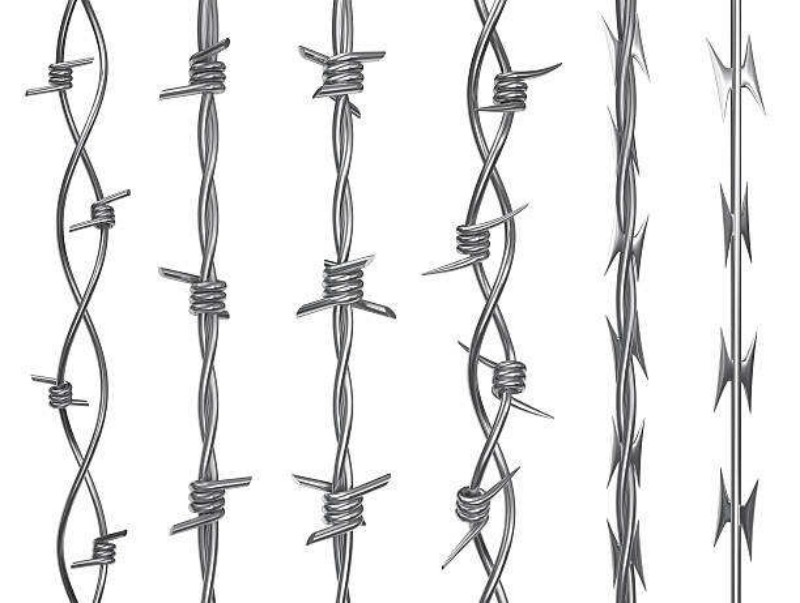

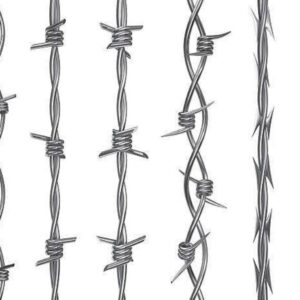

Other types include:

• Single Strand Barbed Wire: Suitable for farm fences and industrial fences, simple structure, easy installation.

• Double Strand Barbed Wire: Suitable for military bases, prisons, and border fences, higher strength and stronger protection.

• Razor Barbed Wire (Concertina Razor): Also known as razor barbed wire roll cage or concertina barbed wire, mainly used in high-security areas such as military defense, prison fences, airport protection, etc.

• Specifications:



  Gauge of	Approximate Length per Kilo in Meter
  Strand and Barb in B.W.G.	Barbs Spacing 3″	Barbs Spacing 4″	Barbs Spacing 5″	Barbs Spacing 6″
  12×12	6.0617	6.759	7.27	7.6376
  12×14	7.3335	7.9051	8.3015	8.5741
  12-1/2×12-1/2	6.9223	7.719	8.3022	8.7221
  12-1/2×14	8.1096	8.814	9.2242	9.562
  13×13	7.9808	8.899	9.5721	10.0553
  13×14	8.8448	9.6899	10.2923	10.7146
  13-1/2×14	9.6079	10.6134	11.4705	11.8553
  14×14	10.4569	11.659	12.5423	13.1752
  14-1/2×14-1/2	11.9875	13.3671	14.3781	15.1034
  15×15	13.8927	15.4942	16.6666	17.507
  15-1/2×15-1/2	15.3491	17.1144	18.406	19.3386
